WEEK 8 FYP

Objectives   : o To Understand method use in this project
                   .o To Understand the device should work
Activities     : On this week, i have to explain about the methodology of my project to my adviser. I have to explain the method i use and how my project device will work. I have prepared flow chart and diagram how the device work.
Analysis      : The explanation are shown below:

 METHODOLOGY, FLOW CHART & FLOW DIAGRAM:

Methodology

The methodology  is an important component that essentially maps out the methods that I will utilize when I do a research. One part of the methodology chapter is a simple review of the problems that need to be considered when tackling the subject at hand.

For my project report, the methodology is as follow:

                      i.        Flow Chart

                    ii.        How the device work

Flow Chart

From the flow chart we can see that our circuit operation. Starting from the beginning, 9V supply are used  for both of the circuit to supply the power on the circuit. Then the circuit will receive a signal from each other. When both of the circuit are out of range and doesn’t receive the signal of each other, the buzzer will automatically sound to tell the parents that their children are out of range and far away from them. So the tracker device will be activate and send the data to the laptop and mobile phone. The GPS tracker at the laptop will detected the coordinate of the child. But if both of the circuit still in range and receive the signal, the buzzer will not sound and the tracker device also will not activated.

How the device work

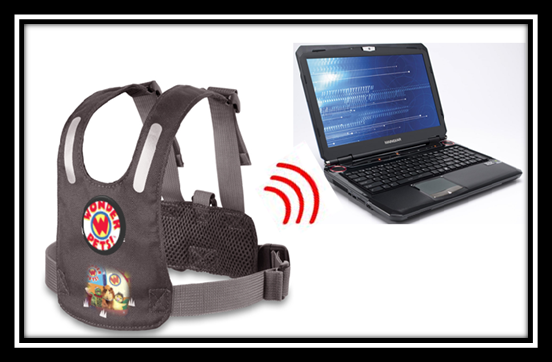

There are 3 circuits and 1 device will be created which is transmitter, receiver, alarm circuits and GPS tracker device. The receiver and alarm circuit are carried by the parents while the transmitter circuit will attach to the child. The receiver will receive the signal while their kids still in signal range. If the transmitter (attach at the kids) is out of range in 10ft, the alarm wills sounds automatically to warn parents of their kids are far from them. Then the GPS tracker device will automatically activate and start send information to the parents mobile phone and laptop.
